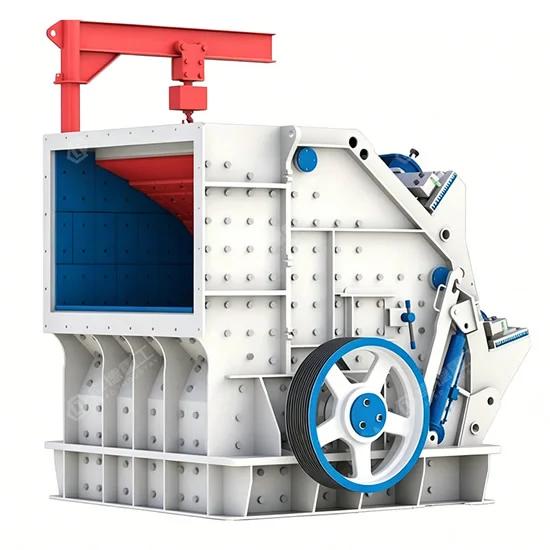

P6S European Hydraulic Impact Crusher is Manufactured Based on Advanced European Technology...
P6S European hydraulic impact crusher is manufactured based on advanced European technology and combined with the working conditions of the sand and gravel industry. The machine adopts high-strength wear-resistant materials and a perfect crushing chamber design, resulting in superior production capacity. The main shaft adopts high-end forging technology and keyless design, with reliable operation and convenient maintenance. It is widely used in highway, water conservancy, electric power, construction and other industries.
Applicable Materials: Granite, Limestone, Concrete, Coal, Calcium Carbide, Quartz, Dolomite, Pyrite
Application Scope: Water conservancy, railway, highway, concrete mixing plant, ore crushing and other industries
Feed Size: 400-600 (mm)
Capacity: 100-700 T/H
Free Scheme Selection, Free Installation Guidance, Free On-site Commissioning
Three-combination hanger design, which can quickly replace blow bars and other wearing parts, reduce downtime for maintenance and lower maintenance costs
Reinforced rotor design with greater rotational inertia, greatly improving crushing ratio and crushing efficiency
External scale for easy control of the distance between blow bars and impact frame
Hydraulic adjustment of the gap between impact frame and blow bars, effectively saving working time and labor intensity, while reducing dependence on operator experience
Wedge fixing for blow bars, enabling faster replacement and greatly enhanced firmness
Impact frame tension stabilizer to maintain constant impact force and reduce power consumption cost
Combination of heavy-duty bearings and integral cast steel bearing housing to increase radial strength; good dustproof and waterproof effect, prolonging bearing life
Arc-shaped blow bars ensure vertical impact of materials, effectively reducing the production capacity decline caused by wear damage on the impact surface of traditional impact crusher blow bars
Uniform liner plate types for interchangeable use, reducing the replacement cost of wearing parts
TECHNICAL PARAMETER
| Model | Discharge Opening Range (mm) | Max. Feeding (mm) | Capacity (t/h) | Power (kw) | Overall Dimension |
|---|---|---|---|---|---|
| P6S1010 | 20-100 | 400 | 100-200 | 90-110 | 2800×1925×2305 |
| P6S1210 | 20-100 | 450 | 140-285 | 110-160 | 2871×1967×2600 |
| P6S1214 | 20-100 | 550 | 200-300 | 160-200 | 2871×2307×2600 |
| P6S1315 | 20-200 | 600 | 250-350 | 200-250 | 3166×2580×2721 |
| P6S1317 | 20-200 | 600 | 250-400 | 200-315 | 3175×2781×2660 |
| P6S1420 | 20-200 | 900 | 300-500 | 315-355 | 3582×3205×3118 |
| P6S1520 | 20-200 | 900 | 400-600 | 400-500 | 3857×3629×3440 |
| P6S1620 | 20-200 | 1200 | 450-700 | 400-500 | 4056×3395×3356 |
High-strength hydraulic impact crusher is a crushing machine that uses impact energy to crush materials. When the machine is working, the rotor rotates at high speed driven by the motor. When materials enter the blow bar action area, they are crushed by impact with the blow bars on the rotor, then thrown to the impact device for secondary crushing, and then bounced back from the impact liner to the blow bar area for re-crushing. This process is repeated. Materials enter the first, second and third impact chambers from large to small for repeated crushing until they reach the required particle size and are discharged from the outlet. Adjusting the gap between the impact frame and the rotor can change the discharge particle size and material shape.

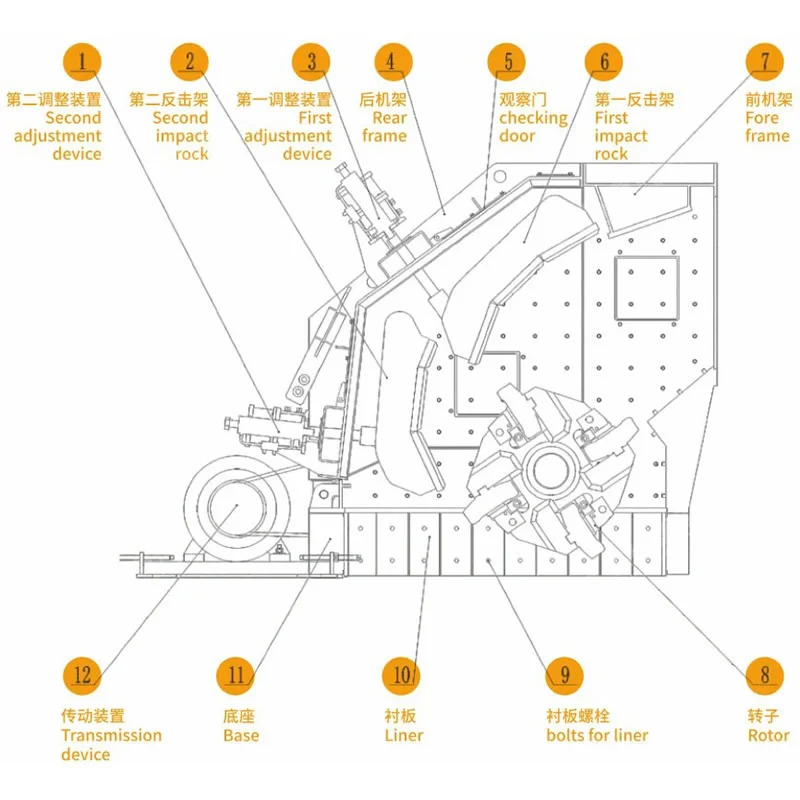

Structure Name
Second Adjustment Device, Second Impact Frame, First Adjustment Device, Rear Frame, Inspection Door, First Impact Frame, Front Frame, Transmission Device, Base, Liner Plate, Liner Bolt, Rotor
