YGM-Q Series of European Type Strength Grinding Mill is Our Company Design and Long-Term Production...
YGM-Q series of European type Strength Grinding Mill is our company design andlong-term production grindingmill with stable,high efficiency,energy-saving,and environmental protection, which has excellent performance parameters and combines many domestic and foreign customer susing experiences.It is widely used in mining,building materials, electric power,road and bridge,coal,metallurgy,chemical industry,ceramics,refractories and otherindustries.It can grind limestone,calcite ,talc,barite,quartz, feldspar,iron ore,kaolin, bentonite,fly ash, bottom slag,pulverized coal, petroleum coke and othernon-flammable and explosivemineral materials with a hardness of less than 9.3and ahumidity ofless than 6%.
Capacity : 0.5-45t/h (The exactly capacity base on theuser's local site and production environment)
Application fields : Fine powderand superfine powderprocessingin mining,buildingmaterials, electric power,road and bridge,coal,metallurgy, chemical industry,ceramics, refractories,etc
Applicablematerials : limestone,calcite ,talc, barite, quartz,feldspar, iron ore,kaolin,bentonite, fly ash,furnace bottom slag,pulverized coal, petroleum coke,etc.the Mors hardness below 9.3 and moisture below 6%non-flammable and explosive materials.
Main Specification of European Strength Grinding Mill
| Model | Main machine | Classifier | Air Blower | ||||
|---|---|---|---|---|---|---|---|
| Speed of Main Mill (r/min) | Feeding Size (mm) | Final Size (mesh) | Capacity (t/h) | Main Power (kw) | Power (kw) | Power (kw) | |
| YGMQ88 | 165 | <20 | 18-425 | 0.4-5 | 22 | 2.2-5.5 | 22 |
| YGMQ95 | 150 | <25 | 0.6-7 | 30 | 2.2-7.5 | 30 | |
| YGMQ1000 | 132 | <25 | 0.8-9 | 37-45 | 5.5-11 | 37-45 | |
| YGMQ1300 | 106 | <30 | 2-18 | 75-90 | 7.5-18.5 | 75-90 | |
| YGMQ1500 | 105 | <35 | 5-23 | 110-132 | 22-30 | 110-132 | |
| YGMQ1750 | 92 | <35 | 7-30 | 132-160 | 30-37 | 160-200 | |
| YGMQ1900 | 78 | <40 | 11-40 | 185-200 | 37-45 | 200-220 | |
| YGMQ2000 | 72 | <45 | 12-45 | 220-250 | 45-55 | 250-280 | |
Note
1、The treatment capacity in the table is based on grinding limestone (SiO₂ < 1%), and the screening rate of the product is 80%.
2、This series of models can be configured according to different production requirements, such as material, process, capacity and so on. Please contact the relevant person in charge of business for details.

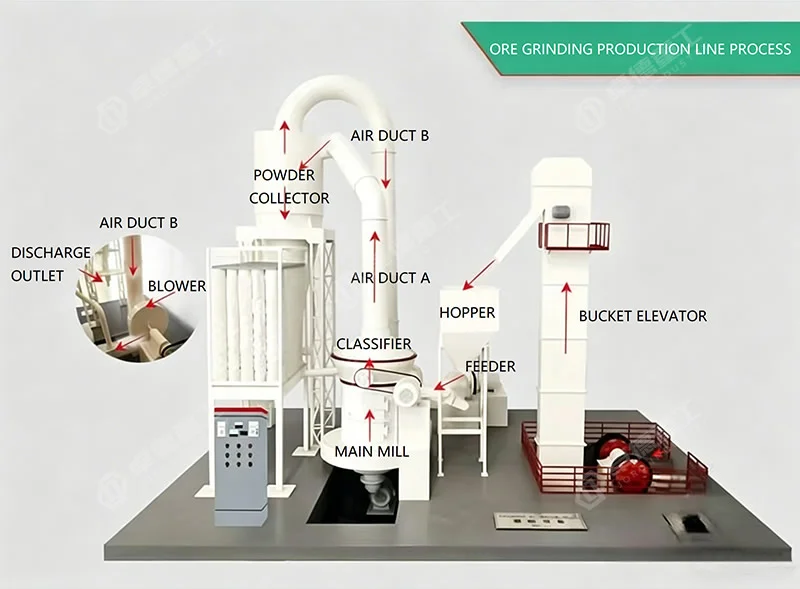

Raw materials with suitable particle sizes are fed into the main unit through a feeding system(such as vibratory,belt, or screw feeders,or airlock feeders). Driven by centrifugal force,the high-speed rotating grinding rollers press tightly against the grinding ring.A blade scoops up the material and directs it into the grinding zone formed between the rollers and the ring. Under grinding pressure,the material is pulverized into powder.Powered by a fan, the ground powder is lifted into a classifier.Particles meeting the fineness requirement pass through the classifier, while oversized particles are rejected and returned to the grinding chamber for further milling.
