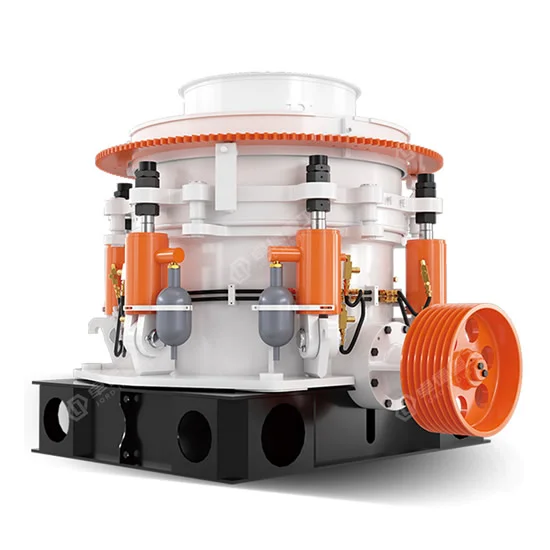

HPS Multi-Cylinder Hydraulic Cone Crusher

HPS hydraulic cone crusher is an advanced crushing equipment developed by absorbing the advanced crushing technology in the world today, which is suitable for crushing various ores and rocks with hard and medium hardness. In the design process, the rotational speed, stroke and crushing cavity shape are optimized and combined to realize the inter-particle laminated crushing, significantly improving the output and product shape.

Capacity: 90-1200 T/H (Capacity determined according to the actual production situation)

Standard type Max.feeding Size(mm): 95-353

Short head type Max.feeding Size(mm): 10-155

Power(kw): 132-630

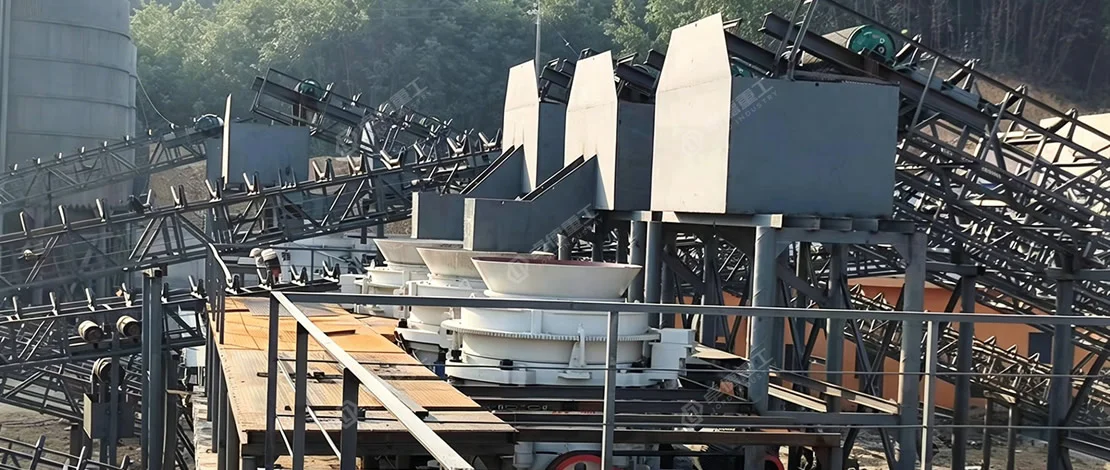

Application fields: widely used in quarry, mining, coal mining, concrete mixing station, dry mortar, power plant and so on.

Applicable materials: river stone, granite, basalt, iron ore, quartz, diabase, iron ore, gold ore, copper ore, etc.

Upgraded structure and high efficiency. Transmission parts and the structure of lubrication seal are optimized further based on the structure of fixed main shaft and eccentric shaft rotates around main shaft. This machine has the features of stronger loading capacity, the biggest installed power in the same model of this industry, smaller size, higher efficiency, lower noise.

High handling capacity. The perfect combination of crushing stroke, crushing speed and crushing chamber makes the capacity increase by 35%-60% than traditional spring cone crusher in production.

Through cavity optimization, the lamination crushing efficiency is improved by using the lamination crushing principle, the wear of vulnerable parts is reduced, and a better finished grain shape is formed.

Full hydraulic operation is applied on cleaning cavity, overload protection, adjustment and locking. It works stably and reliably and operates conveniently Meanwhile the structure of hydraulic system is optimized fully, the adjustment and control are more accurate, the responding of automatic protection is more sensible.

HPS series multi-cylinder hydraulic cone crusher is equipped with multiple medium crushing and fine crushing cavity types, combined with the principle of laminated crushing, to better meet the requirements of medium crushing and fine crushing process.
