The Fuselage Adopts Non-Welded Frame Structure with High Strength Wall Panel and Finished Pin to Form ...
Capacity:80-1510 T/H(Capacity determined according to the actual production situation)
Max.feeding Size(mm):420-1200
Power(kw):75-400
Application fields:C European jaw crusher is widely used in mining,building materials,cement,metallurgy
Applicable materials:various mineral ores and rocks whose compressive strength do not exceed 320Mpa.

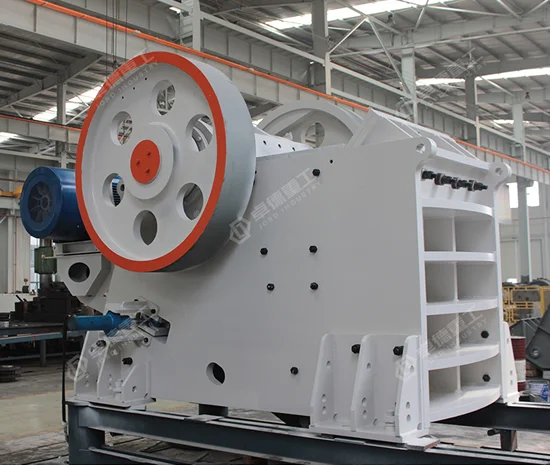

The fuselage adopts non-welded frame structure with high strength wall panel and finished pin to form a firm frame,which improves the load tolerance.
The movable jaw assembly,belt wheel and flywheel are all made of high-quality cast steel or castiron for exceptional durability.In addition,the series uses high-strength cast eccentric shafts and high quality bearing for unparalleled reliability.
The C-series European jaw crusher has optimized cavity design,feed port size and chamber height is highly coordinated,feed port length to width ratio through strict testing,can maximize avoid the phenomenon of clog.
Strictly abide by the kinematic performance design,the use of large centrifugal force and steep elbow bevel design,so that the effective stroke at the bottom of the crushing chamber is larger,to ensure that the equipment has strong power.
The discharge opening adjustment device adopts double wedge block structure,which is convenient and reliable.Mechanical or hydraulic adjustment devices can be provided according to user requirements.It is convenient and fast to adjust the discharge port,reducing the adjustment downtime.

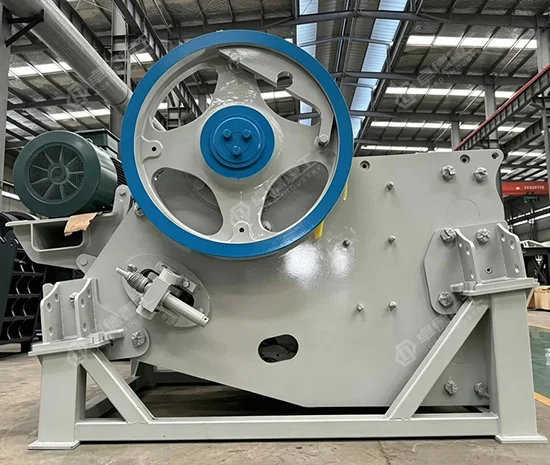

The integrated motor base design saves installation space.Motor base mobile design,so that the triangle belt longer service life.
The elastic stop block and rubber damping device are used to replace the rigid anchor connection,effectively absorbing the peak vibration load,thus reducing the mutual impact between the crusher and the foundation,reducing the fatigue damage to the foundation and improving the service life of the crusher.
TECHNICAL PARAMETER
| Model | Feeding Opening size(mm) | Max.Feeding Size(mm) | Discharge Opening(mm) | Capacity (T/H) | Speed(r/min) | Motor Power(kw) | Dimension (mm) |
|---|---|---|---|---|---|---|---|
| C80 | 520×800 | 420 | 60-150 | 80-290 | 350 | 75 | 2650×1540×1780 |
| C100 | 760×1000 | 650 | 70-200 | 140-400 | 260 | 110 | 3670×2420×2490 |
| C106 | 700×1060 | 600 | 70-200 | 140-420 | 310 | 110 | 3230×2440×2590 |
| C110 | 850×1100 | 720 | 80-200 | 160-550 | 230 | 160 | 3800×2450×2550 |
| C120 | 870×1200 | 740 | 100-200 | 200-650 | 230 | 160 | 3850×2800×3100 |
| C125 | 950×1250 | 800 | 100-250 | 230-760 | 220 | 160 | 4100×2800×3440 |
| C145 | 1100×1450 | 920 | 125-275 | 320-950 | 220 | 200 | 4400×3060×3210 |
| C160 | 1200×1600 | 1020 | 150-300 | 410-1150 | 220 | 250 | 5700×3650×3550 |
| C200 | 1500×2000 | 1200 | 175-300 | 610-1510 | 200 | 400 | 6500×3990×4260 |
| CJ6310 | 630×1000 | 580 | 80-180 | 100-195 | 250 | 75 | 3763×2280×2644 |
| CJ8711 | 870×1100 | 720 | 85-220 | 130-360 | 250 | 110 | 4124×2480×3020 |
| CJ1113 | 1100×1300 | 940 | 120-260 | 360-780 | 220 | 160 | 4863×2762×3489 |
| CJ1216 | 1200×1600 | 1050 | 165-320 | 450-1100 | 220 | 220 | 6700×4040×4465 |

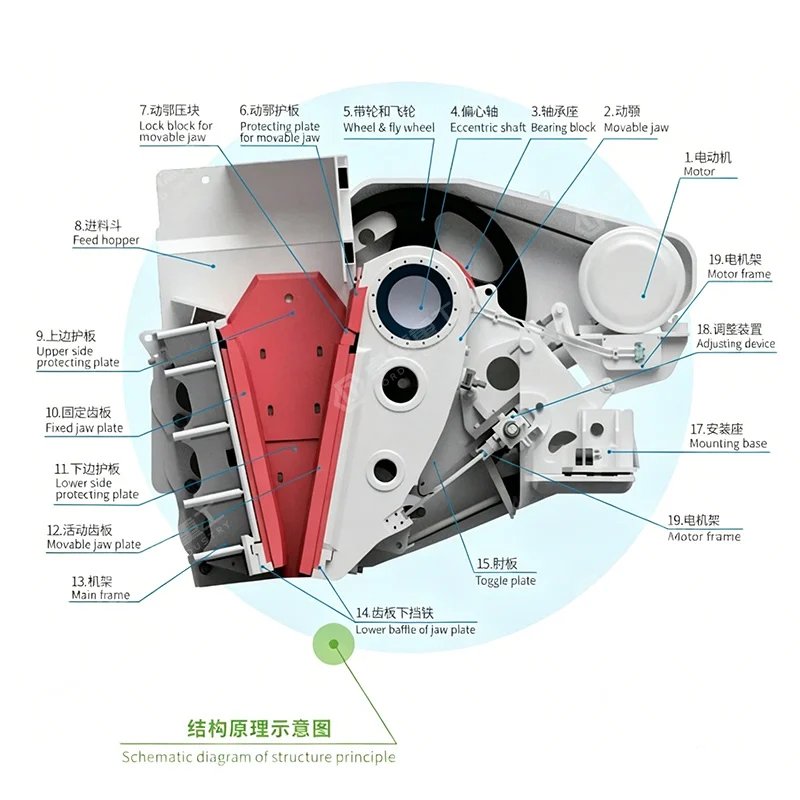

The motor drives movable jaw assembly do reciprocating motion according to the desired trajectory under the action of belt and pulley.The angle between toggle plate and movable jaw increases when movable jaw moves up and the movable jaw closes to the fixed jaw.The materials are crushed in this process.The angle between toggle plate and movable jaw decreases when movable jaw moves down and movable jaw moves away from fixed jaw under the action of the tension rod and spring,then products after being crushed are discharged from the discharge opening.
