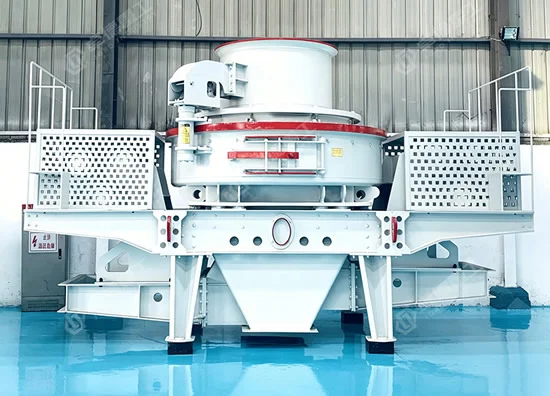

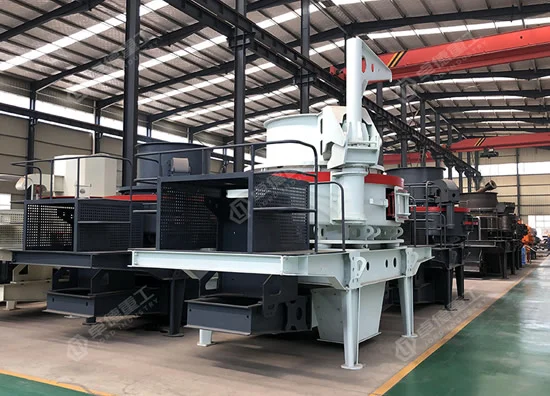

V6S series vertical shaft impact crusher

V6S series vertical shaft impact crusher (sand making machine) is based on the original high-performance VSI series and combined with actual running condition under different working conditions as well as operator’s feedback. By improving the feeding mode, optimizing the broken cavity, adopting new rotor designs and installing lifting device etc, it reduces flow resistance of stones, increases throughput capacity, reduces wear rate of spare parts, increases utilization ratio, extends maintenance cycle and decreases repair time. Which has the characteristics of energy saving, long service life and wide application, help the sand plants develop to large-scale plants with centralized, environmental protected and capacity requested.

Feed at center and sides is realized by the optimized-design stuff distributor and hydraulic device. It becomes convenient to adjust the stuff amount of center feeding and crushes sufficiently.

Crushing efficiency increases. Optimal emission port and smooth curve design decrease the stone’s flow resistance and increase the throughput capacity greatly.

Protecting plates adopt butt joint and exchange up and down after abrasion. It extends the lifespan of wearing parts, reducing the operation cost.

Optimize the motor frame. Motor frame and operation platform adopt integration design, making it compact structure and reliable operation.

Motor frame adopts hydraulic adjustment. Advanced control element ensures balanced load of main shaft double sides.

Hydraulic lifting boom and crane make it easier to change the spare parts.

Leakage-proof design without oil seal and multi-pipes lubrication design lubricate the upper and lower bearings in the meantime, which increases bearing lifespan.

International advanced oil lubrication system. Double oil pumps ensure the supply of oil; stop the machine without oil flow or oil pressure; oil cooling and heating device ensures the bearing lubrication in a best state.

Automatic detecting device makes the machine safe and reliable by warning when the machine is abnormal.

Bearing is international top brand.

Capacity: 180-640t/h (The exactly capacity base on the user's local site and production environment)

Application fields: sand making or shaping, dry mortar, building materials, machine-made sand and various metallurgical slags and so on.

Applicable materials: Limestone, river stone, mountain stone, blue stone, pebble, weathered sand, basalt, granite, quartz, diabase, etc.
