SRM Vertical Mill is Developed and Produced by Our Company on the Basis of Introducing...

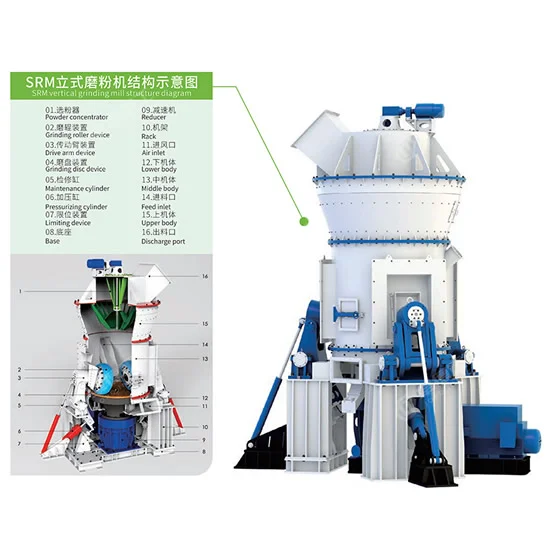

SRM vertical mill is developed and produced by our company on the basis of introducing mature vertical mill technology from Germany and through our own R&D team's continuous improvement in technical innovation. It features low investment and operation cost,high quality of finished products,easy operation and maintenance. It is a new efficient vertical mill with energy saving,environmental protection and zero pollution. At present,the
1、Low investment cost
Set grinding,drying,separating,transportation in one,simple structure,compact layout,open air layout,greatly reduce investment cost.
2、Transmission system,high bearing capacity
Compared with the traditional vertical mill,our transmission reducer adopts a new structure,making the machine have a greater bearing capacity.
3、Hydraulic device,easy maintenance
The use of hydraulic control system adjusts pressure automatically with material changes,so that the mill maintains stable state,reduce energy consumption,prolong the life of roller sleeve,liner.
4、Thin oil lubrication,reliable operation
Thin oil station and automatic protection system ensure safe and reliable operation of the device.
5、A variety of powder selection,widely applicable
Equipment can be equipped with different structure powder selecting machine according to requirements of different materials and fineness.
6、Electric control system,high degree of automation
Equipped with electric control system,it can realize PLC,centralized and DCS control to meet customer needs.
TECHNICAL PARAMETER
| Model | Grinding table diameter (mm) | Max.Feeding size (mm) | HGI index (HGI) | Fineness (R0.08) | Air-in Temperature (°C) | Air-out Temperature (°C) | Material Moisture | Moisture of materials Needed to be dried | Final Moisture | Capacity (T/H) | Power(kw) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SRM1300M | 1300 | ≤30 | >55 | 5-20% | ≤350 | 70-95 | ≤4% | 4%-15% | ≤1% | 10-18 | 132-200 |
| SRM1500M | 1500 | ≤40 | >55 | 5-20% | ≤350 | 70-95 | ≤4% | 4%-15% | ≤1% | 13-25 | 220-285 |
| SRM1700M | 1700 | ≤50 | >55 | 5-20% | ≤350 | 70-95 | ≤4% | 4%-15% | ≤1% | 18-32 | 315-400 |
| SRM1900M | 1900 | ≤60 | >55 | 5-20% | ≤350 | 70-95 | ≤4% | 4%-15% | ≤1% | 23-40 | 450-600 |
| SRM2200M | 2200 | ≤70 | >55 | 5-20% | ≤350 | 70-95 | ≤4% | 4%-15% | ≤1% | 36-54 | 600-750 |
